Jayco Terrain Motor Home Class B - Diesel RVs For Sale
The Jayco Terrain Class B diesel motorhome is small but mighty with rugged all-terrain handling and luxurious amenities! You'll be able to go off-grid and off-road in style and with ease thanks to the JRIDE ride and handling package, and the four-wheel drive is going to make it impossible to miss out on the new course you want to chart.

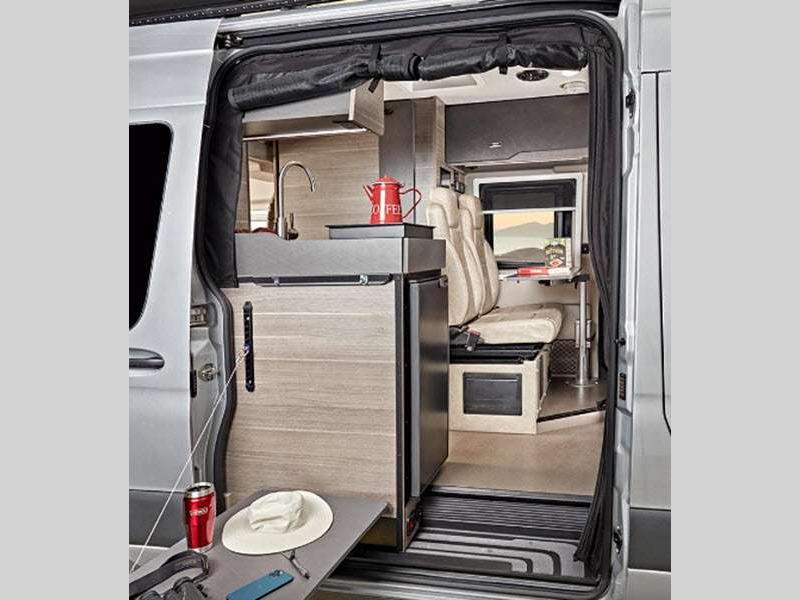

The dual bench seat comes with two seatbelts, as well as slide and recline features for a comfortable ride. If you want to keep your coach filled with fresh air while you camp, then use the side screen door with magnetic and zipper close-offs and the rear screen door with roll-up and black-out capabilities. A fold-down exterior table offers you a place to set your belongings, and you'll also have the same convenience on the interior with the Tecnoform pull-out kitchen countertop extension and the pantry with Tecnoform pull-out extension.
You can do it all with the Jayco Terrain Class B diesel motorhome!
-
Terrain 19Y
Jayco Terrain Class B diesel motorhome 19Y highlights: Power Lift Bed Under-Bed ... more about Terrain 19Y
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 19 ft 7 in Ext Width 7 ft 1 in Int Height 6 ft 1 in Interior Color Serenity Exterior Color Standard, Standard Sandstone, Standard Blue-Grey, Aztec, Forest Glade, Mystic Tide Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 22 gals Grey Water Capacity 20 gals Black Water Capacity 4.8 gals Tire Size BFGoodrich All-Terrain T/A KO2 Fuel Type Diesel Engine 3.0L V6 Chassis Mercedes Benz Sprinter 2500 Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 144 in Number Of Bunks 1 Torque 325 ft-lb Refrigerator Type DC Refrigerator Size 3 cu ft Number of Awnings 1 Awning Info Carefree Armless with LED Lights and Wind Sensor Gross Combined Weight 13550 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Similar Floorplans
Take a Virtual TourTerrain Features:
Standard Features (2023)
Standard Driving Equipment
- Mercedes-Benz® Sprinter 2500 4x4 van with 144-in. wheelbase
- GVWR- 9,050 lb.
- GCWR- 13,550 lb.
- 3.0L V6 engine with 188HP and 325 ft.-lb. torque
- 7-speed automatic transmission
- 220-amp alternator
- Daytime running headlamps
- Power folding/heated side-view mirrors
- 5,000-lb. rear hitch receiver with dual 4/7 pin connector
- 12V chassis battery
- 24.5 5-gal. fuel tank (diesel)
- 5.8-gal DEF Tank
- 10.25-in. MBUX infotainment center
- Power windows and door locks
- A/C and adaptive cruise control
- Active brake assist
- Heated power swivel driver/passenger seats
- Smartphone tray with wireless charging
- Rain-sensing wiper system
- Lane-keeping assist
- Blind spot assist
- Traffic sign assist
- Leather-wrapped tilt steering wheel with integrated controls
- Cab area privacy shade
Standard Exterior Features
- LED-lit running boards for cab and entry doors
- 110V exterior outlet
- Portable solar plug
- LED-lit holding tank valves
- Side screen door with magnetic and zipper close offs
- Rear screen door with roll-up and black out capabilities
- Fold-down exterior table
- On-board air compressor with front and rear chucks
- 48V - 210 amp hour smart lithium battery providing 10.2KW of power
- 3500-watt inverter
- 2nd 48V alternator dedicated to lithium battery
- 30-amp electrical service with detachable power cord
- 200 watts of roof-mounted solar panels
- Utility center with water controls and outside hose
- Winterization drain system
- 12V demand water pump
- Water filtration system
- House battery disconnect switch
- Aqua View® SHOWERMI$ER™ water management system
- Heated grey tank (12V pad) with skid plate
- Interior-mounted fresh water tank
- Remote keyless entry
Standard Interior Features
- Custom-molded, vinyl-wrapped ABS interior wall panels
- Soft-touch vinyl ceiling
- High-intensity LED ceiling lights
- Tecnoform® European-style, cabinetry
- Tecnoform® pull-out kitchen countertop extension
- Pantry with Tecnoform® pull-out extension
- Durable rubber flooring
- JAYCOMMAND® powered by Firefly
- (2) sliding vented windows with cassette shades
- Rear dual-pane acrylic window with cassette shades
- MaxxAir Deluxe roof vent
- (2) additional cab bucket seats with slide and recline features
- BOSS® dual-zone radio with Bluetooth®
- Collapsible dinette table
- 3-cu.ft. DC refrigerator
- Portable induction cooktop
- Stainless-steel sink
- 110V/USB outlets throughout
- Drop-down overhead bed with 750-lb. capacity
- Fiberglass side pods create larger sleeping surface
- Rear garage under bed with L-track mounts for securing cargo
- (2) recessed under-bed storage bags
- RAM® Tough-Track™ mounts throughout
- All-in-one wet bath with shower and cassette toilet
- Removable wood shelves in wet bath
- Powered roof vent in bathroom
- Retractable clothes line in shower
- Seatbelts in all seating locations
- Driver and passenger airbags
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Customer Value Package (Mandatory)
- JRIDE®: Koni® shocks, heavy-duty rear stabilizer bar
- Carefree armless patio awning with LED light strip and wind sensor
- Double roof rack and moveable roof ladder
- Front and rear wind deflectors with front LED light bar
- Hydronic heating system with LED touchscreen control
- 48V Coleman®-Mach® 10 air conditioner
- Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
